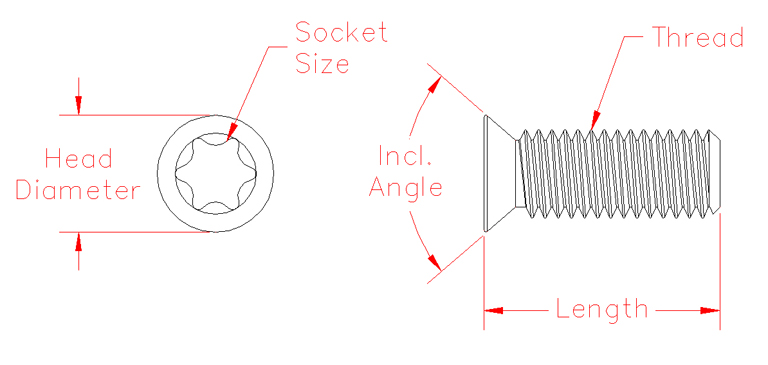

Dual Edge Insert Screw
 |
| Part Number | Head Diameter |
Length | Thread | Included Angle |
Socket Size |
Torque Spec. |
|---|---|---|---|---|---|---|
| ASR 00190 | .270 | .360 | #10-32 | 82 Deg. | Torx-15 | 45 in/lbs |
| ASR 00191 | .270 | .460 | #10-32 | 82 Deg. | Torx-15 | 45 in/lbs |
| ASR 00192 | .270 | .562 | #10-32 | 82 Deg. | Torx-15 | 45 in/lbs |
| ASR 00193 | .270 | .625 | #10-32 | 82 Deg. | Torx-15 | 45 in/lbs |
| ASR 00194 | .270 | .750 | #10-32 | 82 Deg. | Torx-15 | 45 in/lbs |
