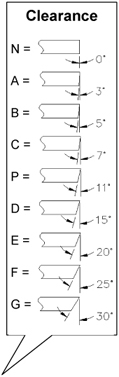

ANSI Inserts

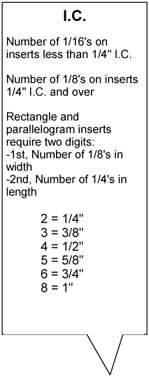

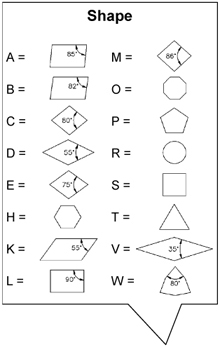

CNMG-432

* Smaller than 1/4" I.C.

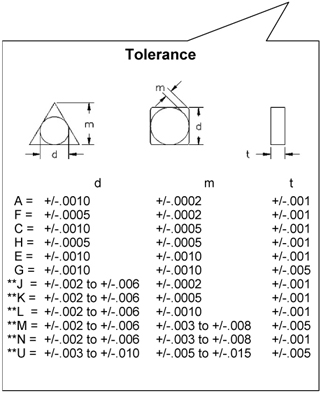

** Exact tolerance is determined by the size of the insert.

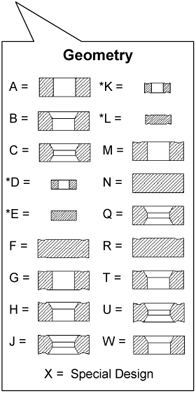

Geometry:

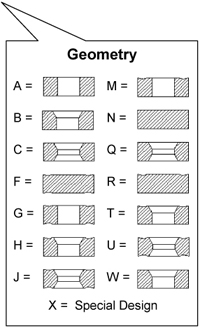

B, C, H, J - countersink is between 70 - 90 degrees.
Q, T, U, W - countersink is between 40 - 60 degrees.

---

ISO Inserts

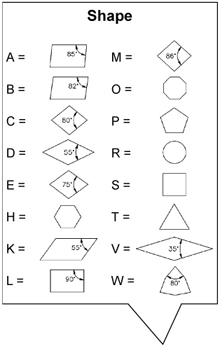

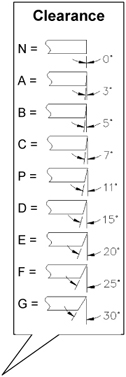

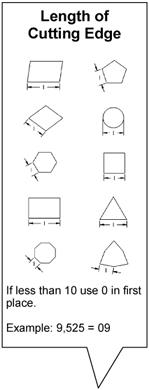

C N M G - 12 04 08

* Exact tolerance is determined by the size of the insert.

Geometry:
B, C, H, J - countersink is between 70 - 90 degrees.
Q, T, U, W - countersink is between 40 - 60 degrees.

---

Tooling

A S M C - 10 40 - 00408 - 2

---

Dual Edge Inserts

A D I P - 403 - H R - 030 - L
