Steel

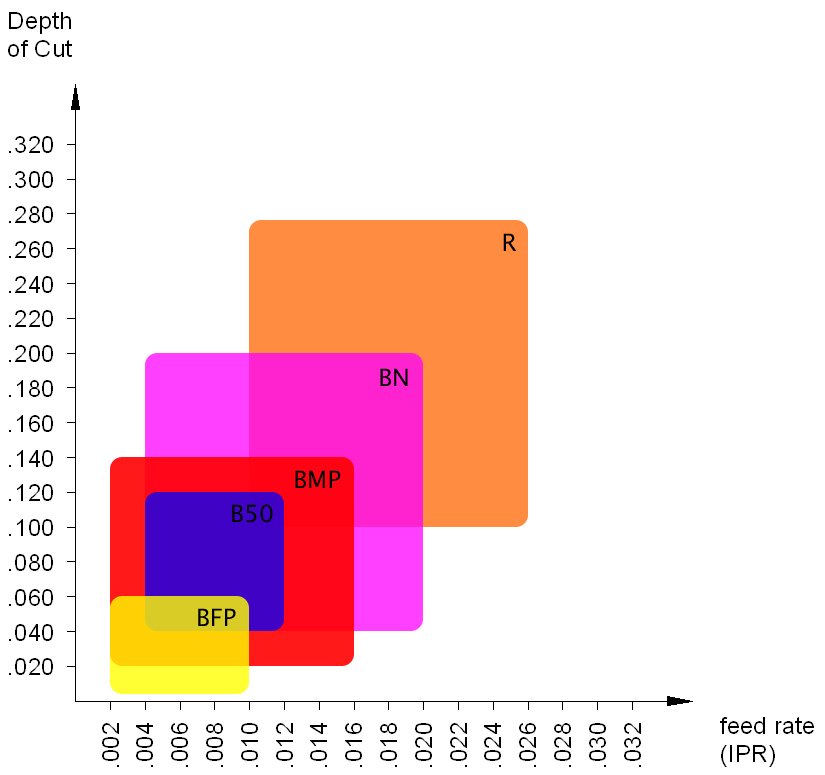

Stainless Steel

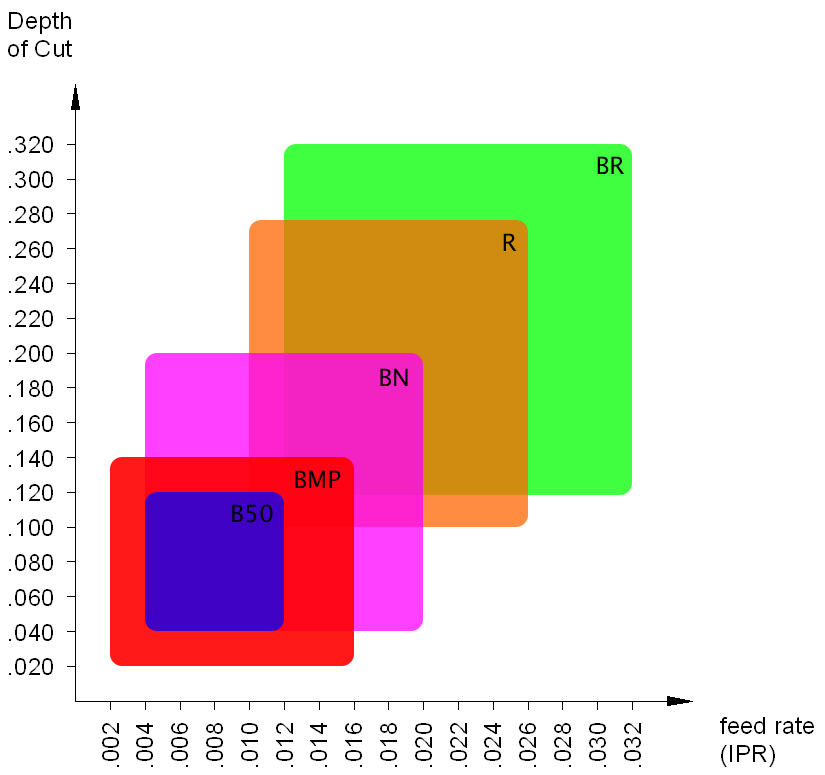

Cast Iron

Finish Cutting

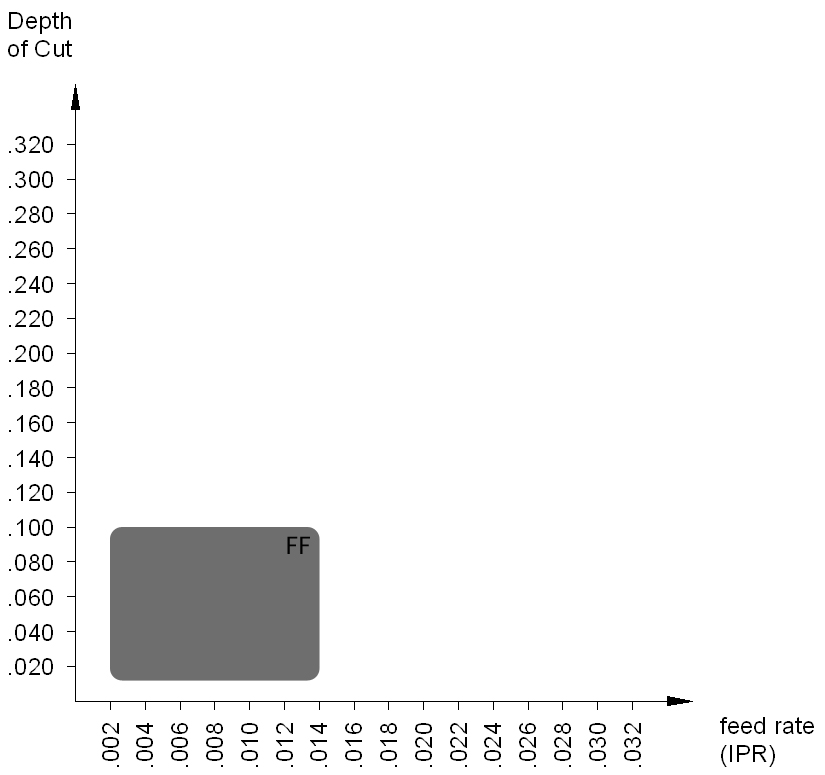

FF

Good chip control quality on varied depth of cut. Excellent cutting edge strength has been acquired due to the special chip-breaker. Recommended depth of cut (inch): .012~.100 Recommended feed rate (IPR): .002~.014

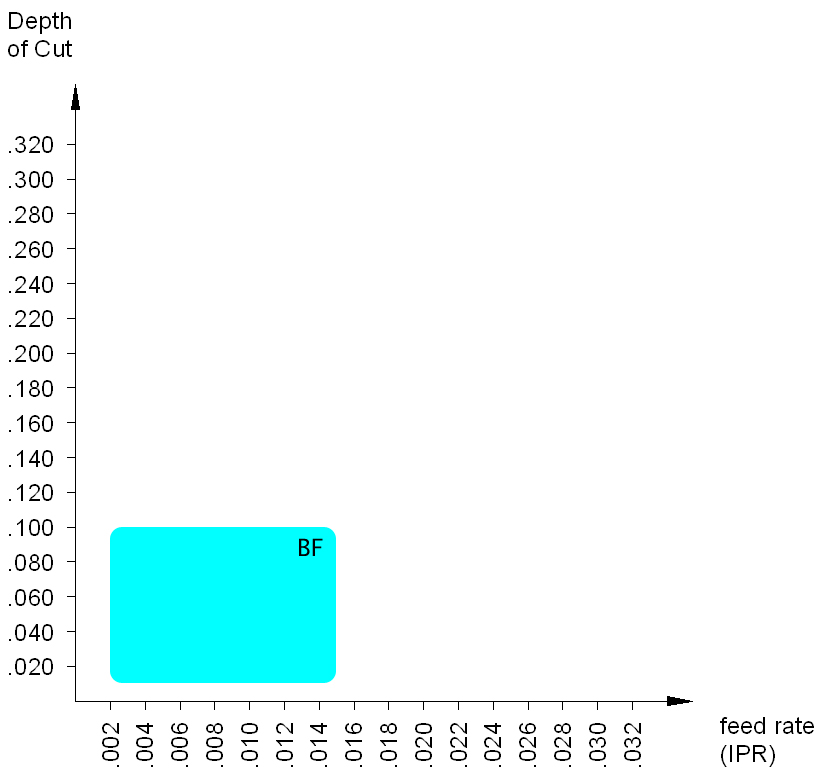

BF

Excellent chip control in varied depth of cut cutting. Strong cutting edge toughness due to special design. Recommended depth of cut (inch): .010~.100 Recommended feed rate (IPR): .002~.015

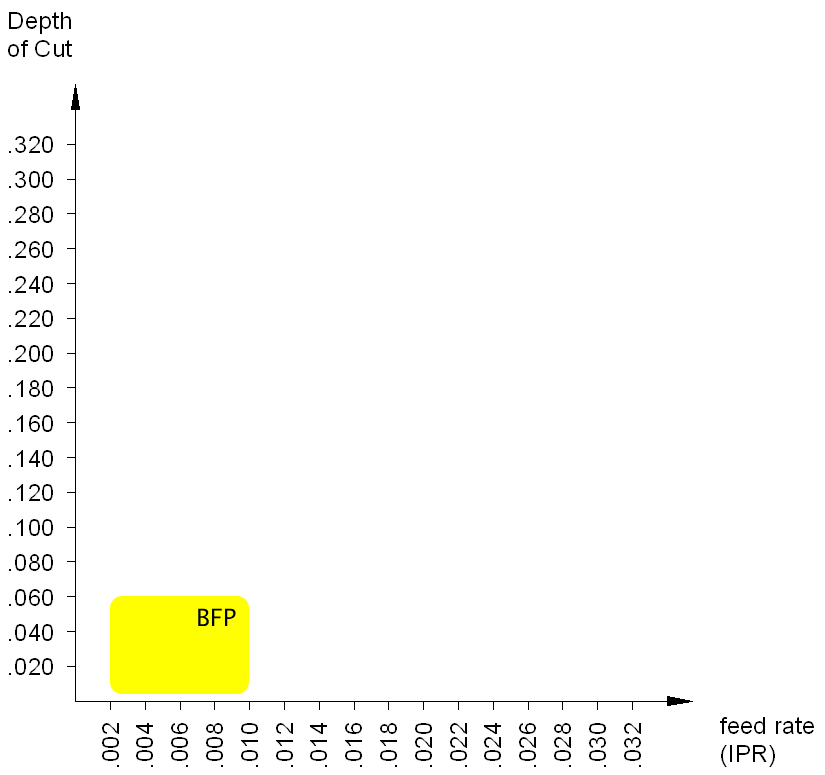

BFP

Excellent chip control at shallow depth of cut and low feed rate. Excellent surface finish of work piece due to reduced cutting force. Suitable for fine boring. Recommended depth of cut (inch): .004~.060 Recommended feed rate (IPR): .002~.010

Medium Cutting

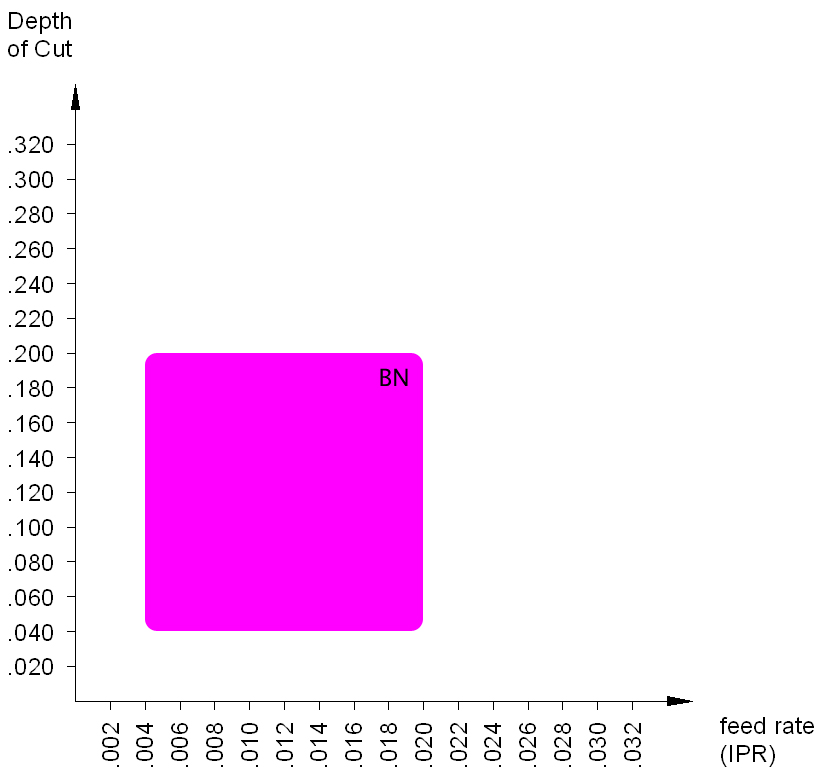

BN

Wide available chip control range from medium-finishing to medium-roughing. Suitable chip breaker for CNC machining. Recommended depth of cut (inch): .040~.200 Recommended feed rate (IPR): .004~.020

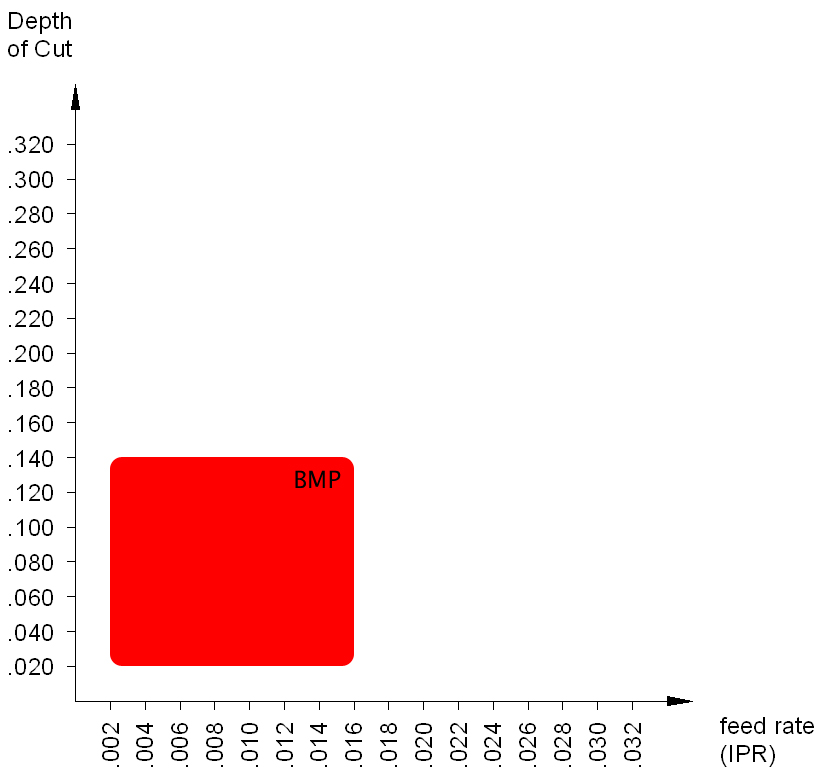

BMP

Excellent chip control at wide range of cutting conditions. Suitable for stainless steel cutting. Recommended depth of cut (inch): .020~.140 Recommended feed rate (IPR): .002~.016

B50

Suitable for interrupted cutting and cast iron machining. Good surface finish die to low cutting force. Suitable for both boring and outer diameter turning. Recommended depth of cut (inch): .040~.120 Recommended feed rate (IPR): .004~.012

Medium to Rough Cutting

BR

Suitable for deep depth of cut and high feed cutting of steel and cast iron. Suitable for intermittent cutting. Recommended depth of cut (inch): .118~.320 Recommended feed rate (IPR): .012~.032

Rough Cutting

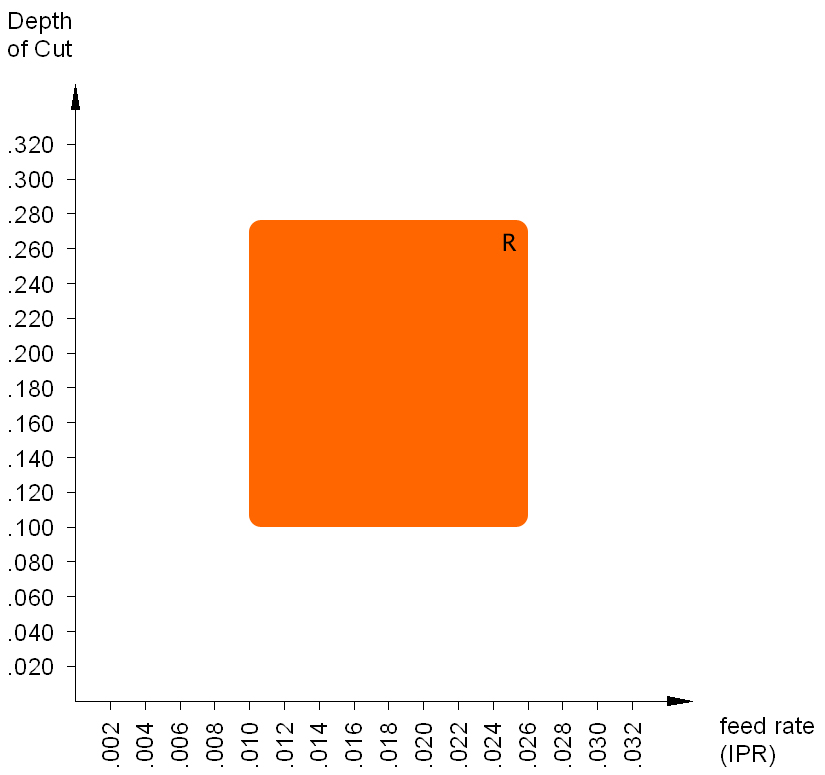

R

Excellent chip control at deep depth of cut and fast feed rate. Strong cutting edge makes excellent cutting performance at intermittent cutting. Recommended depth of cut (inch): .100~.276 Recommended feed rate (IPR): .010~.026
